WEB SLING TYPE 5: ENDLESS SLING

Status: In Stock

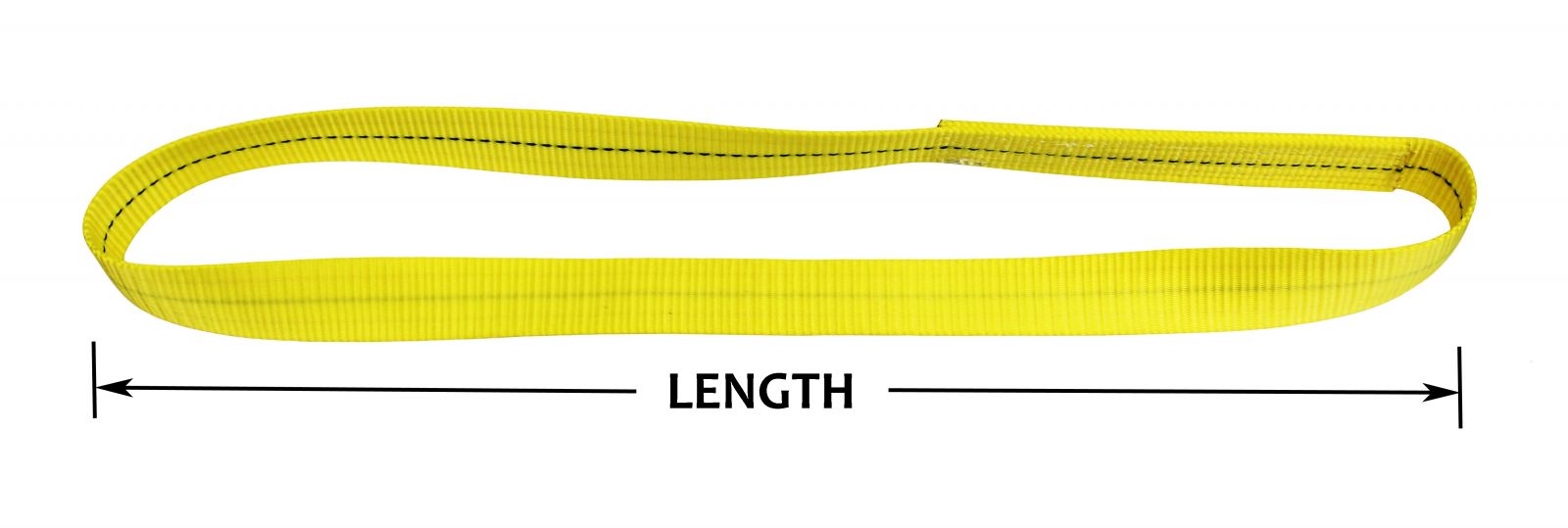

WIDE WEB SLING (TYPE 5: ENDLESS SLING)

Type 5

    • Endless sling is the most versatile sling that can be used in vertical, choker, or basket hitches. The hook and load contact points can be rotated to extend the life of the sling.

    • The sling legs can be spread for improved load control.

Safety Factor: 5:1

SEE WORKING LOAD LIMITS BELOW

Deals ends in:

$5.87$250.08

Buy Now
SKU:EN - ENDLESS SLING

WEB SLING (TYPE 5: ENDLESS SLING)

Type 5

    • Endless sling is the most versatile sling that can be used in vertical, choker, or basket hitches. The hook and load contact points can be rotated to extend the life of the sling.

    • The sling legs can be spread for improved load control.

Polyester Webbing Breaking Strength: 9,800lbs/ Inch

Safety Factor: 5:1

1-PLY Vertical Lift(lbs) Choked Lift(lbs) Basket Lift(lbs) 60° Basket Lift(lbs) 45° Basket Lift(lbs) 30° Basket Lift(lbs)
Web Width
1″ 3,200 2,500 6,400 5,542 4,525 3,200
2″ 6,200 4,960 12,400 10,738 8,767 6,200
3″ 9,400 7,520 18,800 16,281 13,292 9,400
4″ 12,400 9,920 24,800 21,477 17,534 12,400



2-PLY Vertical Lift(lbs) Choked Lift(lbs) Basket Lift(lbs) 60° Basket Lift(lbs) 45° Basket Lift(lbs) 30° Basket Lift(lbs)
Web Width
1″ 6,200 4,960 12,400 10,738 8,767 6,200
2″ 12,400 9,920 24,800 21,477 17,543 12,400
3″ 17,600 14,080 35,200 30,483 24,886 17,600
4″ 22,000 17,600 44,000 38,104 31,108 22,000

 ! WARNING: DO NOT EXCEED RATED CAPACITIES

Polyester Webbing Breaking Strength: 9,800lbs/ Inch

Safety Factor: 5:1

    • Easy use combined with industrial rigging for its lightness and flexibility.

    • Able to print company names and others.

    • RED YARN woven into the core of the webbing to serve only as one of many aids in determining whether and when a sling should be removed from service.

POLYESTER SLING CHARACTERISTICS

    • Low elongation

REMOVAL FROM SERVICE

A  web sling shall be removed from service if any of the following are visible:

    •  If sling rated capacity or sling material identification is missing or not readable.

    •  Acid or alkalis burns.

    •  Melting, charring or weld spatters on any part of the web sling.

    •  Holes, tears, cuts, snags or embedded particles.

    •  Broken or worn, stitching in load bearing splices.

    •  Excessive abrasive wear.

    •  Knots in any part of the web sling.

    •  Excessive pitting, corrosion, cracked, distorted or broken fittings.

    •  Any other visible damage that causes doubt as to the strength of the sling.

INSPECTION RECORDS

Written inspection records, utilizing the identification for each sling as established by the user, should be kept on file for all web slings. These records should show a description of the sling and its condition on each periodic inspection.

WEB SLING SAFETY USE CHEMICAL CHART

  CHEMICAL    NYLON   POLYESTER
Acid NO *
Alcohol OK OK
Aldehydes OK NO
Strong Alkalis OK **
Bleaching Agents NO OK
Dry Cleaning Solvents OK OK
Ethers OK NO
Halogenated Hydrocarbons OK OK
Hydrocarbons OK OK
Ketones OK OK
Oil, Crude OK OK
Oil Lubricating OK OK
Soaps, Detergents OK OK
Water, Seawater OK OK
Weak Alkalis OK OK
