BOLT-TYPE ANCHOR SHACKLES
Safety Factor 6:1
- Blue color pin
- Hot dip galvanized, forged
- Pin slips through opposite side and is fastened by nut and cotter pin
- Rating is embossed in the shackle body
- Bolt-type anchor shackles with bolt & nut with cotter pin meet the performance requirements of Federal Specification RR-C-271D Type IVA, Grade A, Class 1
WARNING!! DO NOT EXCEED RATED CAPACITIES

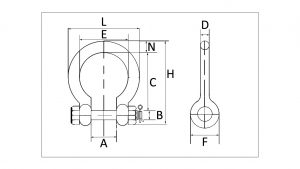

SPEIFICATIONS:
| Part No. | Nominal Size (INCHES) | Working Load Limit (TONS) | Dimensions (INCHES) | Weight (LBS) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | H | L | N | ||||
| 31415 | 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 2.49 | 1.78 | 0.38 | 0.2 |
| 31420 | 7/16 | 1-1/2 | 0.75 | 0.50 | 1.69 | 0.44 | 1.16 | 1.06 | 2.91 | 2.03 | 0.44 | 0.3 |
| 31425 | 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.50 | 1.31 | 1.19 | 3.28 | 2.31 | 0.50 | 0.4 |
| 31430 | 5/8 | 3-1/4 | 1.06 | 0.72 | 2.38 | 0.63 | 1.69 | 1.50 | 4.19 | 2.94 | 0.69 | 1.5 |
| 31435 | 3/4 | 4-3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2.00 | 1.81 | 4.97 | 3.50 | 0.81 | 2.3 |
| 31440 | 7/8 | 6-1/2 | 1.44 | 1.00 | 3.31 | 0.88 | 2.28 | 2.09 | 5.83 | 4.03 | 0.97 | 3.4 |
| 31441 | 1 | 8-1/2 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 6.56 | 4.69 | 1.06 | 5.0 |
| 31442 | 1-1/8 | 9-1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 7.47 | 5.16 | 1.25 | 6.9 |
| 31443 | 1-1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 8.25 | 5.75 | 1.38 | 9.7 |
| 31444 | 1-1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 10.00 | 6.88 | 1.62 | 17.2 |
| 31445 | 1-3/4 | 25 | 2.88 | 2.00 | 7.00 | 1.84 | 4.88 | 4.19 | 12.34 | 8.86 | 2.25 | 29.4 |
| 31446 | 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 13.68 | 9.97 | 2.40 | 45.7 |
| 31447 | 2-1/2 | 55 | 4.13 | 2.75 | 10.50 | 2.62 | 7.25 | 5.69 | 17.84 | 12.87 | 3.13 | 85 |
