G80 Bridle Chain Slings
-
- The chain sling will be the best choice if the operation environment is high temperature or a rough surface of the lifted object.
-
- The chain sling will not stretch if operated under the working load limits, but there is a 17% specific elongation against the breaking load limit.
-
- Aluminum capacity tag for identification.
-
- Safety Factor= 4:1
Single Leg Chain Sling (1)
.jpg) |
Chain Dia. (inch) | Oblong Master Link (inch) | Rated Capacity 90° |
| 9/32″ | 1/2″ | 3,500 LBS | |
| 3/8″ | 3/4″ | 7,100 LBS | |
| 1/2″ | 1″ | 12,000 LBS | |
| 5/8″ | 1-1/4″ | 18,100 LBS |
Double Leg Chain Sling (2)
 |
Chain Dia. (inch) | Oblong Master Link (inch) | Rated Capacity 60° (lbs) | Rated Capacity 45° (lbs) | Rated Capacity 30° (lbs) |
| 9/32″ | 1/2″ | 6,100 | 4,900 | 3,500 | |
| 3/8″ | 3/4″ | 12,300 | 10,000 | 7,100 | |
| 1/2″ | 1″ | 20,800 | 17,000 | 12,000 | |
| 5/8″ | 1-1/4″ | 31,300 | 25,600 | 18,100 |
Triple Leg Chain Sling (3)
 |
Chain Dia. (inch) | Oblong Master Link (inch) | Rated Capacity 60° (lbs) | Rated Capacity 45° (lbs) | Rated Capacity 30° (lbs) |
| 9/32″ | 3/4″ | 9,100 | 7,400 | 5,200 | |
| 3/8″ | 1″ | 18,400 | 15,100 | 10,600 | |
| 1/2″ | 1-1/”4 | 31,200 | 25,500 | 18,000 | |
| 5/8″ | 1-1/2″ | 47,000 | 38,400 | 27,100 |
Quadruple Leg Chain Sling (4)
 |
Chain Dia. (inch) | Oblong Master Link (inch) | Rated Capacity 60° (lbs) | Rated Capacity 45° (lbs) | Rated Capacity 30° (lbs) |
| 9/32″ | 3/4″ | 9,100 | 7,400 | 5,200 | |
| 3/8″ | 1″ | 18,400 | 15,100 | 10,600 | |
| 1/2″ | 1-1/4″ | 31,200 | 25,500 | 18,000 | |
| 5/8″ | 1-1/2′ | 47,000 | 38,400 | 27,100 |
G100 Bridle Chain Slings
Single Leg Chain Sling (1)
|
Chain Dia. (inch) | Oblong Master Link (inch) | Rated Capacity 90° (lbs) |
| 9/32″ | 1/2″ | 4,300 | |
| 5/16″ | 1/2″ | 5,700 | |
| 3/8″ | 3/4″ | 8,800 | |
| 1/2″ | 3/4″ | 15,000 | |
| 5/8″ | 1″ | 22,600 |
Double Leg Chain Sling (2)
|
Chain Dia. (inch) | Oblong Master Link (inch) | Rated Capacity 60° (lbs) | Rated Capacity 45° (lbs) | Rated Capacity 30° (lbs) |
| 9/32″ | 1/2″ | 7,400 | 6,100 | 4,300 | |
| 5/16″ | 3/4″ | 9,900 | 8,100 | 5,700 | |
| 3/8″ | 3/4″ | 15,200 | 12,400 | 8,800 | |
| 1/2″ | 1″ | 26,000 | 21,200 | 15,000 | |
| 5/8″ | 1-1/4″ | 39,100 | 32,000 | 22,600 |
Triple Leg Chain Sling (3)
|
Chain Dia. (inch) | Oblong Master Link Sub-Assembly (inch) | Rated Capacity 60° (lbs) | Rated Capacity 45° (lbs) | Rated Capacity 30° (lbs) |
| 9/32″ | 3/4″ | 11,200 | 9,100 | 6,400 | |
| 5/16″ | 3/4″ | 14,800 | 12,100 | 8,500 | |
| 3/8″ | 1″ | 22,900 | 18,700 | 13,200 | |
| 1/2″ | 1-1/4″ | 39,000 | 31,800 | 22,500 | |
| 5/8″ | 1-1/2″ | 58,700 | 47,900 | 33,900 |
Quadruple Leg Chain Sling (4)
|
Chain Dia. (inch) | Oblong Master Link (inch) | Rated Capacity 60° (lbs) | Rated Capacity 45° (lbs) | Rated Capacity 30° (lbs) |
| 9/32″ | 3/4″ | 11,200 | 9,100 | 6,400 | |
| 5/16″ | 3/4″ | 14,800 | 12,100 | 8,500 | |
| 3/8″ | 1″ | 22,900 | 18,700 | 13,200 | |
| 1/2″ | 1-1/4″ | 39,000 | 31,800 | 22,500 | |
| 5/8″ | 1-1/2″ | 58,700 | 47,900 | 33,900 |
! WARNING: DO NOT EXCEED RATED CAPACITIES

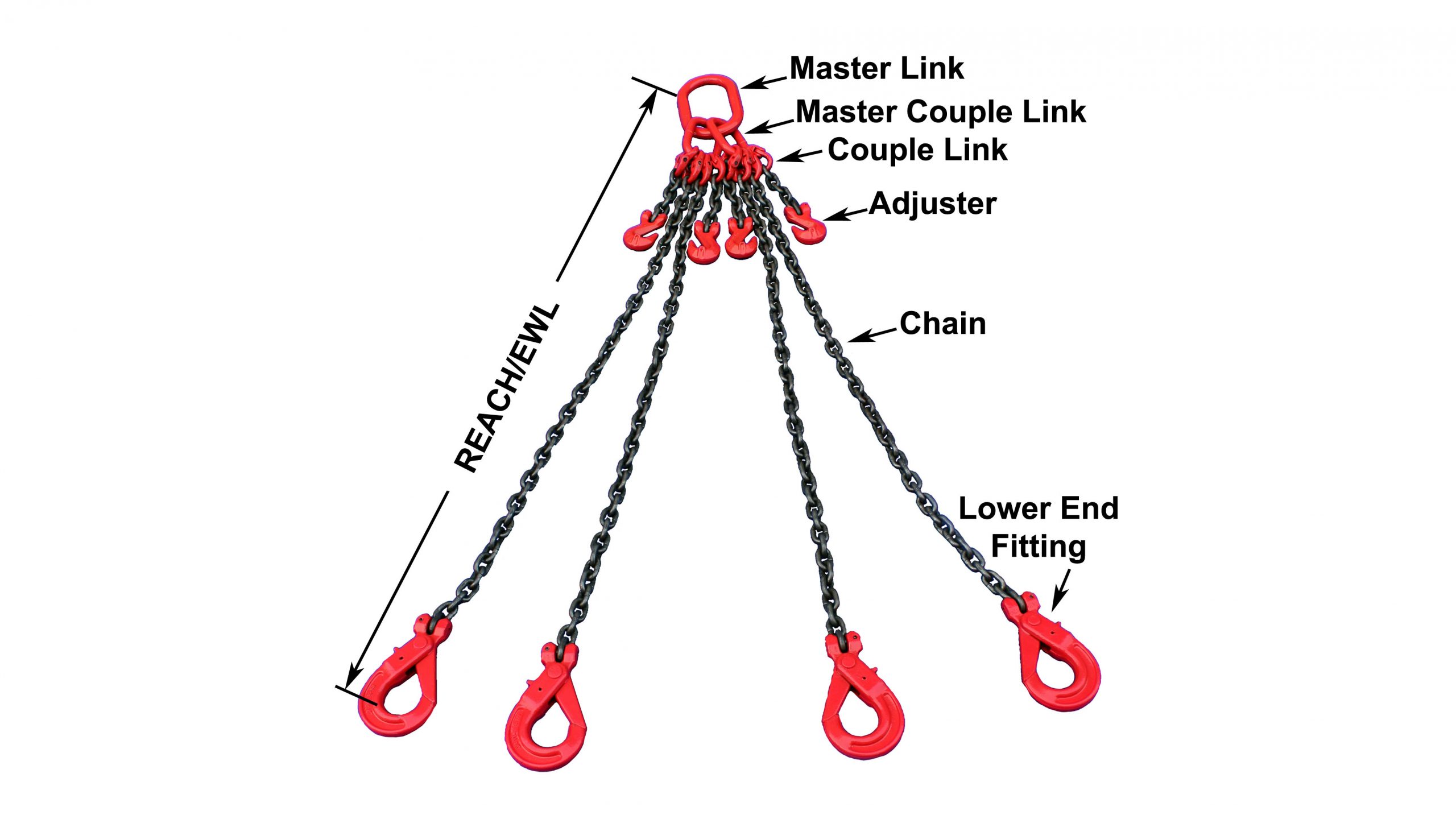

REACH OR EFFECTIVE WORKING LENGTH (EWL)- see attached picture below
The reach of a chain sling is the distance between bearing points of the upper and lower terminal fittings. This distance, commonly known as the Effective Working Length should be quoted when ordering slings. Shortening clutches may be fitted to a sling, making the reach adjustable, hence increasing the versatility of the sling.
